Hermetically Sealed Sliding Door Specification

General Use
Commercial, Medical Institutions

Design
Single/Double Panel Sliding, Modern Minimalistic

Height
Customizable (Standard height: 2100 mm)

Specific Usage
Hospitals, Cleanrooms, Operation Theatres, Laboratories

Regional Style
Modern / Industrial

Dimension (L*W*H)
Customizable as per specific requirements

Furniture Type
Hermetically Sealed Sliding Door

Material
Stainless Steel / Aluminum with Glass

Metals Type
Stainless Steel (304/316 grade), Aluminum Alloy

Folded
No

Size
Customizable (Standard options: 900mm x 2100mm, 1200mm x 2100mm, etc.)

Maximum Loading
Up to 100kg

Feature
Hermetic Sealing, Automatic or Manual Operation, Smooth Sliding Mechanism

About Hermetically Sealed Sliding Door

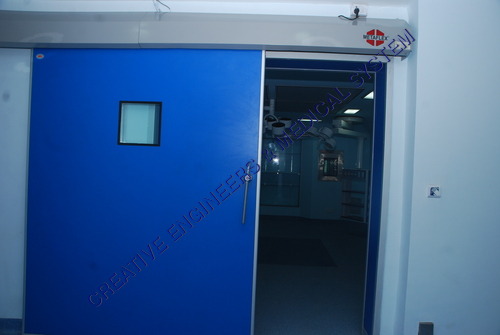

Hermetically Sealed Sliding Door

Relying on our wide experience and knowledge in this sector, we are counted amongst the top most and reputed manufacturers of Hermetically Sealed Sliding Door. Primarily used in medical sector, it maintains satirically and the correct air pressure in the room. Our offered range is equipped with microprocessor based electronic automation system due to which it can be operated manually and automatically. Highly durable range of Hermetically Sealed Sliding Door is offered by us at industry leading prices.

Specifications

Meets international quality and safety requirements.
Motor : Brush less DC Motor
Noise level of movement : Less then 60 decibel.
Controller : Microprocessor Based.
The Track : Single piece extruded aluminium.
Vision Window : 300mm x 300mm
Environment Temperature : -20 - 50degree C.
Starting time will be able to regulate from 5 second to 20 second and starting speed will be 600mm per second.
Electrical safety codes for high and low voltage system

Product Details

Application	In Hospitals
Open Style	Automatic
Door Type	Sliding

Advanced Hermetic Sealing for Sensitive Environments

Engineered to provide superior airtightness, this sliding door system is perfect for spaces that demand supreme cleanliness and contamination control, such as operation theatres, cleanrooms, and laboratories. Hermetic sealing technology limits the entry of dust, bacteria, and airborne particles, thus supporting critical standards in modern medical and industrial settings.

Customizable Construction for Tailored Fit

Users can choose from various standard dimensions or request bespoke sizing to accommodate unique architectural needs. Both single and double-panel options are offered, in either stainless steel (304/316 grade) or aluminum alloy with glass, catering to contemporary and industrial aesthetics while ensuring long-lasting durability.

Flexible Operation and Modern Design

The Hermetically Sealed Sliding Door features both manual and automatic opening modes to suit different preferences or functional requirements. Smooth sliding mechanisms, a modern minimalistic design, and strong load-bearing capabilities provide reliable performance for commercial, medical, or industrial environments.

FAQs of Hermetically Sealed Sliding Door:

Q: How does the hermetic sealing system benefit hospitals and cleanrooms?

A: Hermetic sealing prevents the passage of contaminants, ensuring controlled environments remain sterile. This is essential in hospitals, operation theatres, and laboratories where maintaining hygiene is critical for patient safety and experimental integrity.

Q: What materials are available for the Hermetically Sealed Sliding Door, and how do they differ?

A: Doors are available in high-grade stainless steel (304/316) and aluminum alloy, often combined with glass panels. Stainless steel offers superior corrosion resistance, making it ideal for medical and laboratory settings, while aluminum provides a lighter, modern alternative.

Q: When should I choose automatic versus manual operation?

A: Automatic operation is particularly advantageous in areas with high foot traffic or strict hygiene protocols, as it limits contact and improves accessibility. Manual doors are suitable for spaces where automation isnt critical or when a cost-effective solution is needed.

Q: Where can these doors be installed besides hospitals?

A: Apart from hospitals, these doors are suitable for cleanrooms, pharmaceutical facilities, research labs, industrial manufacturing areas, and any commercial or institutional space that requires reliable, contamination-resistant barriers.

Q: What is the installation process for a hermetically sealed sliding door?

A: Installation involves precise fitting by trained professionals to ensure airtight closure. After selecting the desired customization, the door is measured, fabricated, and mounted using specialized tracks and sealing systems for optimal performance.

Q: Can the size and configuration be customized?

A: Yes, the door system is fully customizable in dimensions and layout, with options for single or double panels, standard heights like 2100 mm, and lengths such as 900mm or 1200mm. Custom orders can accommodate unique architectural needs.

Q: What are the main advantages of using glass panels within these doors?

A: Glass panels allow visibility and natural light to pass through while still maintaining hermetic sealing. This combination supports monitoring, communication, and a more open environment while upholding hygiene standards.
